Adjustable Shade Laser Welding Helmet with OD10+ Protection
Product thumbnail

Adjustable Shade Laser Welding Helmet with OD10+ Protection

$0.00
Sold Out
Share:

Notify Me
Wishlist

The 100LW Laser Welding Helmet offers ultimate safety against direct laser exposure (EN207 OD10+@1064nm) and UV/IR light. Features a clear Shade 2.0 light state, fast 1/25,000s switching, smart panel controls, and an ergonomic headgear.


SKU 100LW-Xz

MODEL Adjustable Shade Laser Welding Helmet with OD10+ Protection

Notify me when back in stock

Please tick this box to proceed.
  • Description
  • Features
  • Specifications
  • Reviews

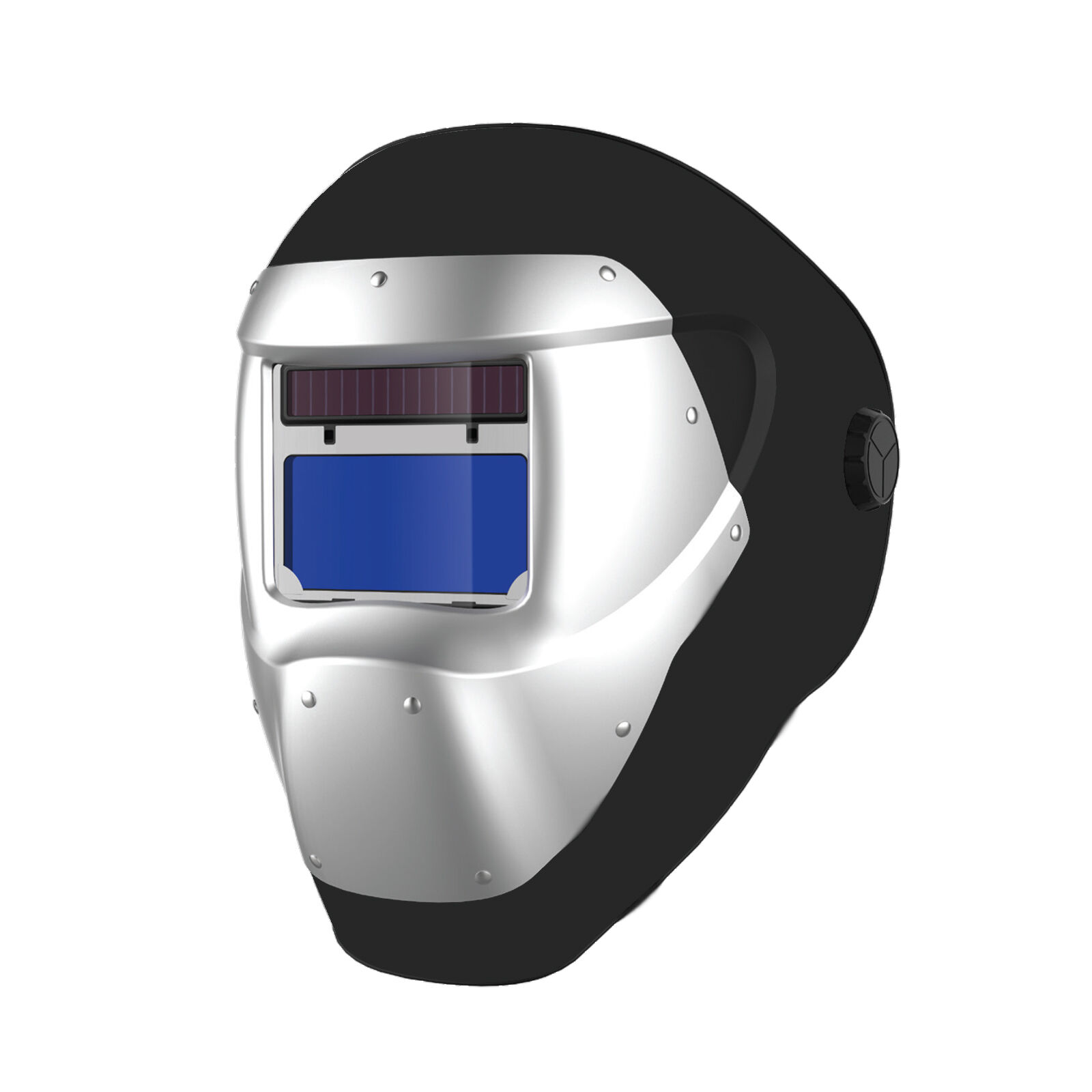

The 100LW Laser welding/cutting/cleaning helmet is specifically engineered to provide professional-grade protection during high-intensity laser applications. The advanced variable shade lens offers comprehensive defense against direct laser exposure, as well as reflection, scattering, diffraction, and divergence from the laser beam. Simultaneously, it shields the operator from harmful UV, IR, and blue light spectrums.

Combining safety with comfort, this helmet is the ultimate solution for operators looking to maintain high-quality workmanship without compromising on eye and tissue safety during laser welding, cutting, and cleaning tasks.

Key Features

  • Effective Laser Protection: Designed to meet EN207 OD10+@1064nm, the 100LW provides full protection to prevent eye burns, retinal damage, and other critical tissue injuries.
  • Advanced Headgear Design: Fully adjustable viewing angle and distance. Delivers optimized weight distribution to ensure maximum comfort during extended use.
  • Ultra-Clear Vision: Experience exceptional clarity and detail with TECMEN's light state 2.0 variable shade laser lens. Superior vision quality leads directly to superior work quality.
  • Smart Adjustment Panel: Shade number, delay, and sensitivity are all easily customized using a highly user-friendly control panel.
Specification Details
ADF Model 100LW
Viewing Area 96x46.5mm
Optical Class 1 / 1 / 1 / 2
Number of Sensors 2
Power On/Off Automatic On/Off
Dark State 4-8/8-12
Light State Shade 2.0
Switching Speed 1/25,000s, from Light to Dark
Special Modes GRIND / CUT / MIX / DARK
Sensitivity Control Low-High,button control
Delay 0.1-1.0s,button control
UV/IR Protection Up to Shade DIN 16 at all times
Operating Temp -10℃ to 55℃(14℉ to 131℉)
Storing Temp -20℃ to 70℃(-4℉ to 158℉)
Helmet Material special compound material
Laser Protection 1000-1100 D LB7+ IR LB8
Optical Density(OD) OD 8@1000-1100nm, OD 10+@1064nm, OD 8+@1070nm
Approvals CE(EN 207, EN ISO 16321)
SKU
100LW-Xz
